Roller Coating UV OPVs
Mid-viscosity UV coatings for roller-coater application on offset-printed board.
Home › Products › UV Curable Coatings › Roller Coating UV OPVs
Overview
The UviCure roller-coater range

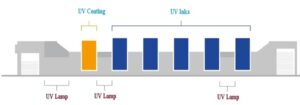

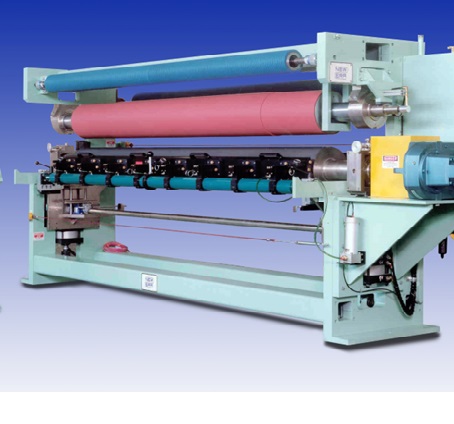

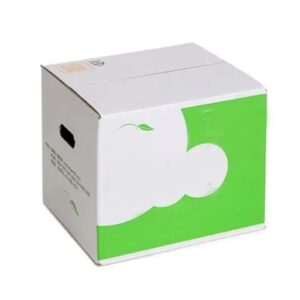

Roller-coater application on offset-printed board is the highest-volume UV coating format in commercial print. The UviCure range covers standard gloss, high-performance gloss for porous stock, texture top coats, metallised PET board coatings, high-slip and high-flexibility grades.
Grades in this series
UviCure 10RC
Standard gloss coating. Viscosity 45±5 s, gloss above 90 GU, 2.8–3.2 g/m². Paper, board, CC-PET, LDPE and BOPP above 40 dyne.
UviCure 11RC
High-performance gloss for less print area and high porosity. Viscosity 65±5 s, gloss above 85 GU, 3.0–3.5 g/m².
UviCure 12RC
Texture top coat with larger drips. Viscosity 50±5 s, paper and board.
UviCure 14RC
Metallised PET coating. Viscosity 55±5 s, gloss above 95 GU, 2.5–3.0 g/m². High scuff and scratch resistance for UV offset printed met-PET board.
UviCure 15RC
Gloss coating with good foldability.
UviCure 16RC
High-slip coating for playing cards.
UviCure 17RC
Gloss coating for high-GSM paper, 2.0–2.5 g/m². High flexibility and compressibility for book covers.
UviCure 20RC
Texture coating with small drips.
Product data
| Viscosity range | 40–65 s, Ford Cup B#4 at 25 °C |
|---|---|
| Gloss | 85–95+ GU at 60° |
| Coat weight | 2.0–3.5 g/m² depending on grade |
| Substrates | Paper, board, CC-PET, LDPE, BOPP above 40 dyne, metallised PET laminated board |
| Over inks | Conventional offset inks with water-based board primer, and UV offset inks |
Downloads
Technical documents
Download the Technical Data Sheet, Safety Data Sheet and Regulatory Summary for every product in this range. Technical data sheets are provided as standard for all Uniform Industries printing inks and coatings.
| Product | Description | Documents |
|---|---|---|
| UniCure-10RC | High-gloss UV coating | TDSSDSRegulatory |
| UniCure-11RC | High-gloss UV coating for low print-area and sub-standard boards | TDSSDSRegulatory |
| UniCure-12RC | UV texture top coat for drip-off effect | TDSSDSRegulatory |
| UniCure-14RC | High-scuff gloss UV coating for metallised-PET board | TDSSDSRegulatory |
| UniCure-15RC | High-gloss, high-scuff UV coating | TDSSDSRegulatory |
| UniCure-16RC | High-slip UV coating for playing cards | TDSSDSRegulatory |
| UniCure-17RC | Flexible gloss UV coating for book covers | TDSSDSRegulatory |
| UniCure-19RC | High-matt UV coating | TDSSDSRegulatory |
| UniCure-20RC | UV texture top coat for drip-off effect | TDSSDSRegulatory |
| UniCure-21RC | High-speed UV coating | TDSSDSRegulatory |
| UniCure-22RC | Fast-curing high-slip gloss OPV for gravure | TDSSDSRegulatory |
| UniCure-23RC | Fast-curing chemical-resistant gloss OPV for gravure | TDSSDSRegulatory |
| UniCure-100RC | High-gloss UV coating for flexo | TDSSDSRegulatory |
| UniCure-2010RC | Low-migration, low-odour UV coating | TDSSDSRegulatory |
TDS = Technical Data Sheet. SDS = Safety Data Sheet (MSDS) according to Regulation (EC) 1907/2006 Annex II and UN GHS. The Regulatory Summary lists the compliance status of each product. Click a document to read it online in the viewer; each document can also be downloaded as PDF (up to 5 downloads per location). Product catalogues are available to read online. For a controlled copy, a declaration of compliance for your specific application, or documents for a product not listed here, write to sales@ufindustries.com.
