UV Curable Adhesives
Foil primers, laminating adhesives, cold-foil and casting adhesives for narrow-web labels, folding cartons and industrial assembly. One-component, 100 % solids, cured in seconds by UV or UV LED.
Home › Products › UV Curable Coatings › UV Curable Adhesives
Overview
UV adhesives that cure on demand
Uniform Industries UV curable adhesives are one-component, solvent-free acrylate systems that stay liquid on the press until they pass under the lamp, then cure to a bonded film in a fraction of a second. Because nothing has to evaporate there is no drying tunnel, no VOC and no pot life: the adhesive on the anilox at the end of the shift is the same as at the start.
The range covers UCFP foil primers for cold-foil transfer on labels and cartons, UCLA laminating adhesives for film-to-film and film-to-paper lamination with optical clarity, UCFA and Galaxy grades for casting and holographic effects, and low-migration versions for food-packaging structures. All grades run on standard UV flexo coating units and cure with medium-pressure mercury or 395 nm LED lamps.
Grades in this range
Every grade has a Technical Data Sheet, Safety Data Sheet and Regulatory Summary in the documents section below.

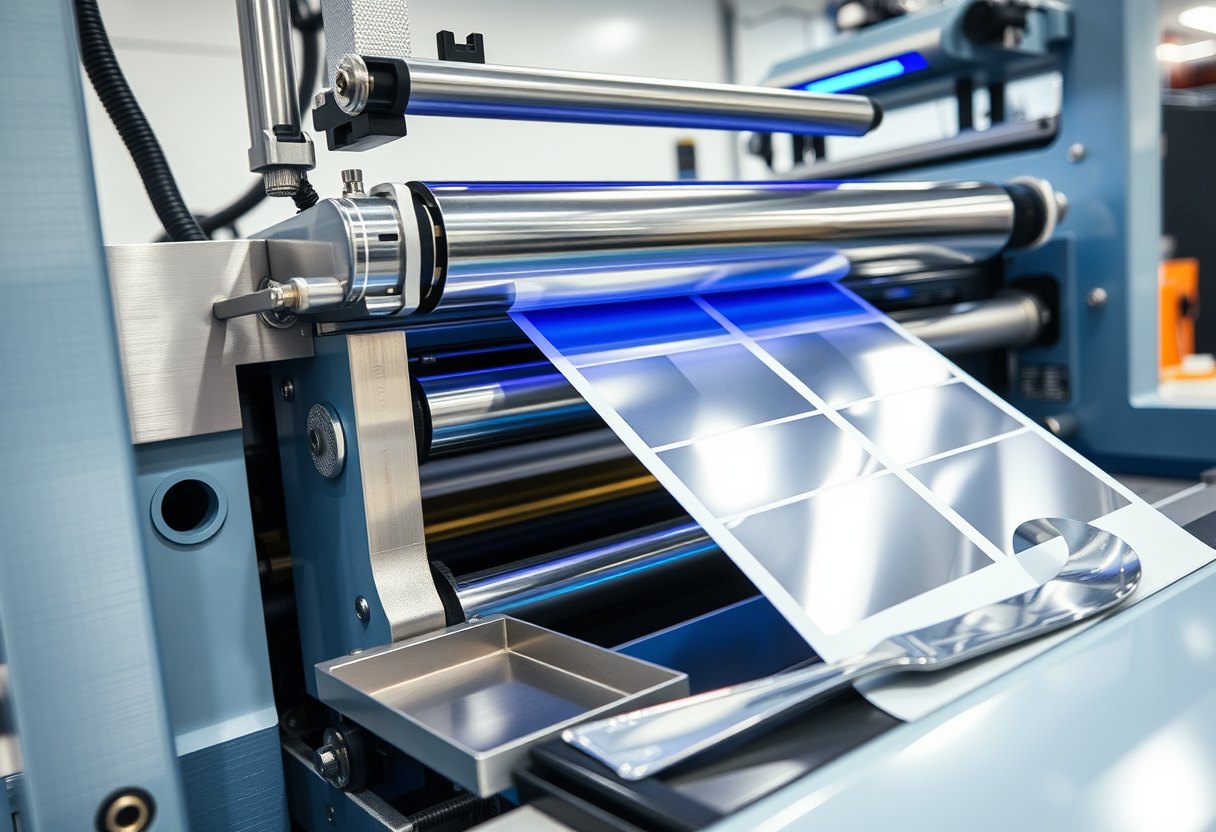

UCFP-650P / 651P
Cold-foil primers for narrow-web labels and sheet-fed cartons; high foil pick-up, sharp edges, fine text and reverse detail.
UCLA-652OB / 653OBF
Optically brilliant laminating adhesives for film-to-film and film-to-paper; high bond strength with full clarity.
UCLA-654LM / UCFA-655LM
Low-migration laminating and cold-foil adhesives for food-packaging labels and cartons.
Galaxy 2210 – 2280
Casting and holographic lamination adhesives for cast-and-cure effects on labels, cartons and flexible packaging.
UV LED cure
All grades cure under 395 nm LED as well as medium-pressure mercury lamps; see each TDS for the dose.
Compliance
Raw materials selected per the EuPIA Charter; TPO- and ITX-free photoinitiator packages on the LM grades.
Product data
| Chemistry | UV / UV LED curable acrylate, 100 % solids, one component |
|---|---|
| Process | UV flexo coating unit, anilox 4 – 12 BCM; sheet-fed offset coater for cartons |
| Cure | Medium-pressure Hg 120 – 300 mJ/cm² or 395 nm LED; see TDS |
| Substrates | Paper, board, PE, PP, PET, BOPP, metallised films (≥ 38 dyn/cm) |
| Pack | 5 kg, 20 kg; 200 kg on request |
| Documents | TDS, SDS and Regulatory Summary per grade – see below |
Downloads
Technical documents
Download the Technical Data Sheet, Safety Data Sheet and Regulatory Summary for every product in this range. Technical data sheets are provided as standard for all Uniform Industries printing inks and coatings.
| Product | Description | Documents |
|---|---|---|
| UniCure Foil Primer UCFP-650P | UV flexo primer for metallised and synthetic substrates | TDSSDSRegulatory |
| UniCure Galaxy-2210 | UV-curable adhesive for bonding metal to glass | TDSSDSRegulatory |
| UniCure Galaxy-2220 | UV-curable adhesive for bonding glass to glass | TDSSDSRegulatory |
| UniCure Galaxy-2230 | UV-curable adhesive for plastic bonding with excellent adhesion to acrylic | TDSSDSRegulatory |
| UniCure Galaxy-2235 | UV-curable adhesive for plastic bonding, ideal for PETG | TDSSDSRegulatory |
| UniCure Galaxy-2236 | UV-curable adhesive for laminating acrylic to composite material | TDSSDSRegulatory |
| UniCure Galaxy-2237 | UV-curable adhesive for glass and crystal with excellent moisture resistance | TDSSDSRegulatory |
| UniCure Galaxy-2240 | UV-curable adhesive with very high shear strength, elongation and impact resistance | TDSSDSRegulatory |
| UniCure Galaxy-2270 | UV-curable adhesive with more flexibility for metal and metallised plastics | TDSSDSRegulatory |
| UniCure Galaxy-2280 | UV and anaerobic curing adhesive and conformal coating | TDSSDSRegulatory |
| UniCure Galaxy UCFA-655OBF | UV-curable wet-lamination cold-foil adhesive | TDSSDSRegulatory |
| UniCure Galaxy UCFA-656OBF | UV-curable cold-foil adhesive for films | TDSSDSRegulatory |
| UniCure In-Line Laminating Adhesive UCLA-653OBF | In-line UV laminating adhesive, optical-brightener-free | TDSSDSRegulatory |
| UniCure In-Line OBB Laminating Adhesive UCLA-652OB | In-line UV laminating adhesive with optical brightener | TDSSDSRegulatory |
| UniCure LM Cold Foil Adhesive UCFA-655LM | Low-migration UV adhesive for cold-foil blocking | TDSSDSRegulatory |
| UniCure LM Foil Primer UCFP-651P | Low-migration UV flexo primer for NC-coated roll | TDSSDSRegulatory |
| UniCure Low Migration Laminating Adhesive UCLA-654LM | Low-migration in-line UV laminating adhesive | TDSSDSRegulatory |
TDS = Technical Data Sheet. SDS = Safety Data Sheet (MSDS) according to Regulation (EC) 1907/2006 Annex II and UN GHS. The Regulatory Summary lists the compliance status of each product. Click a document to read it online in the viewer; each document can also be downloaded as PDF (up to 5 downloads per location). Product catalogues are available to read online. For a controlled copy, a declaration of compliance for your specific application, or documents for a product not listed here, write to sales@ufindustries.com.
