UV Coatings for Gravure Machine
Low-viscosity, high-gloss UV coatings designed for gravure application on pouch and pan masala work.
Home › Products › UV Curable Coatings › UV Coatings for Gravure Machine
Overview

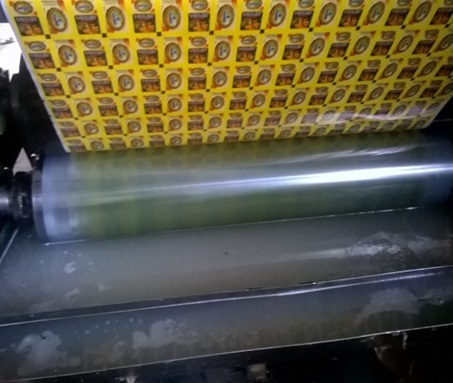

Gravure-applied UV overprint varnish
Gravure application demands a lower viscosity than roller coating, because the coating has to release cleanly from the engraved cells at speed. Our gravure UV grades are formulated at medium to low viscosity while holding gloss above 90 GU.
Because of the low viscosity and high hardness, the coatings reach the required result at low coat weight with good gloss retention.
Grades in this series
UviCure 21RC
Gloss OPV for gravure, medium viscosity, 35±5 s Ford B4. For chromo and coated paper over water-based and solvent-based NC inks. Water resistance above 200 rubs.
UviCure 22RC
Fast-curing, high-slip gloss OPV for gravure, coefficient of friction below 0.2.
UviCure 23RC
High-resistance OPV for gravure application.
Product data
| Viscosity | 35±5 s, Ford Cup B#4 at 25 °C |
|---|---|
| Gloss | Above 90 GU at 60° |
| Substrates | Chromo and coated paper |
| Over inks | Water-based and solvent-based NC inks |
| Resistance | Water above 200 MEK rubs, alcohol above 30, chemical above 8 |
Downloads
Technical documents
Download the Technical Data Sheet, Safety Data Sheet and Regulatory Summary for every product in this range. Technical data sheets are provided as standard for all Uniform Industries printing inks and coatings.
| Product | Description | Documents |
|---|---|---|
| UniCure-21GR | High-speed UV coating | TDSSDSRegulatory |
| UniCure-21RC | High-speed UV coating | TDSSDSRegulatory |
| UniCure-22RC | Fast-curing high-slip gloss OPV for gravure | TDSSDSRegulatory |
| UniCure-23RC | Fast-curing chemical-resistant gloss OPV for gravure | TDSSDSRegulatory |
| UniCure-24GR | Low-odour high-speed UV coating | TDSSDSRegulatory |
TDS = Technical Data Sheet. SDS = Safety Data Sheet (MSDS) according to Regulation (EC) 1907/2006 Annex II and UN GHS. The Regulatory Summary lists the compliance status of each product. Click a document to read it online in the viewer; each document can also be downloaded as PDF (up to 5 downloads per location). Product catalogues are available to read online. For a controlled copy, a declaration of compliance for your specific application, or documents for a product not listed here, write to sales@ufindustries.com.
